2.

Steam
Boiler

  • Leading technology
  • Low energy consumption
  • High reliability
  • Large water and steam volume
  • Customized designs
  • Telemanagement

Steam boilers,
hot water boilers and superheated
water boilers:

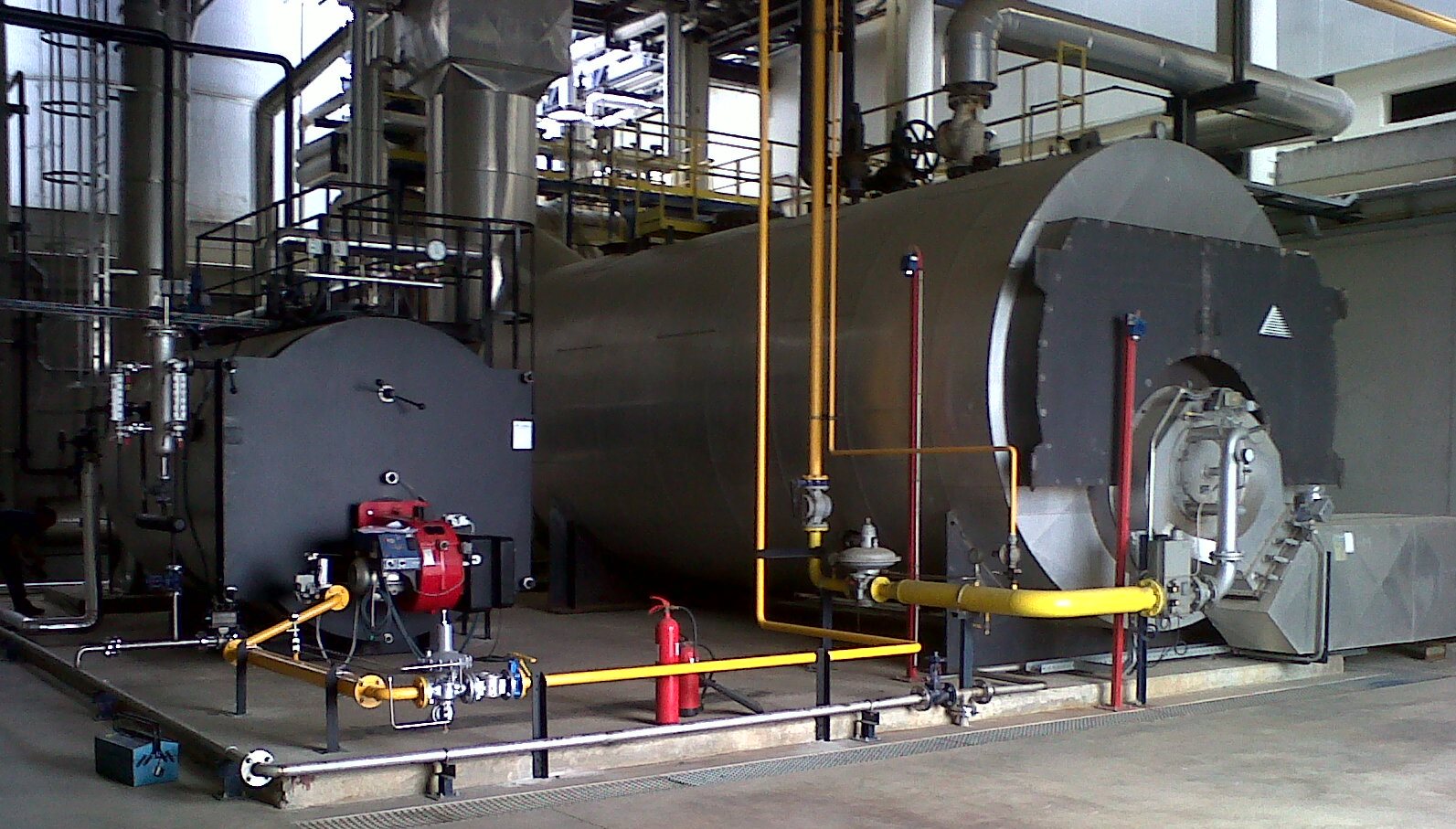

  • Steam Shell boilers from 250 to 50.000 kg/h. Design pressure PS up to 25 bar. Saturated steam or superheated steam.

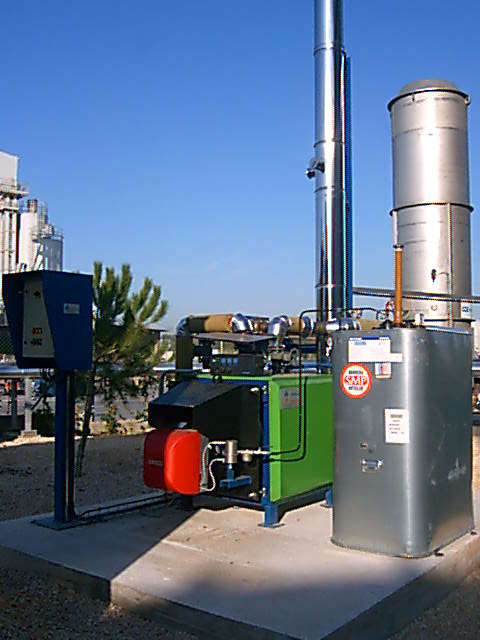

  • Hot water boiler from 60.000 to 20.000.000 kcal/h and superheated water to 190ºC.

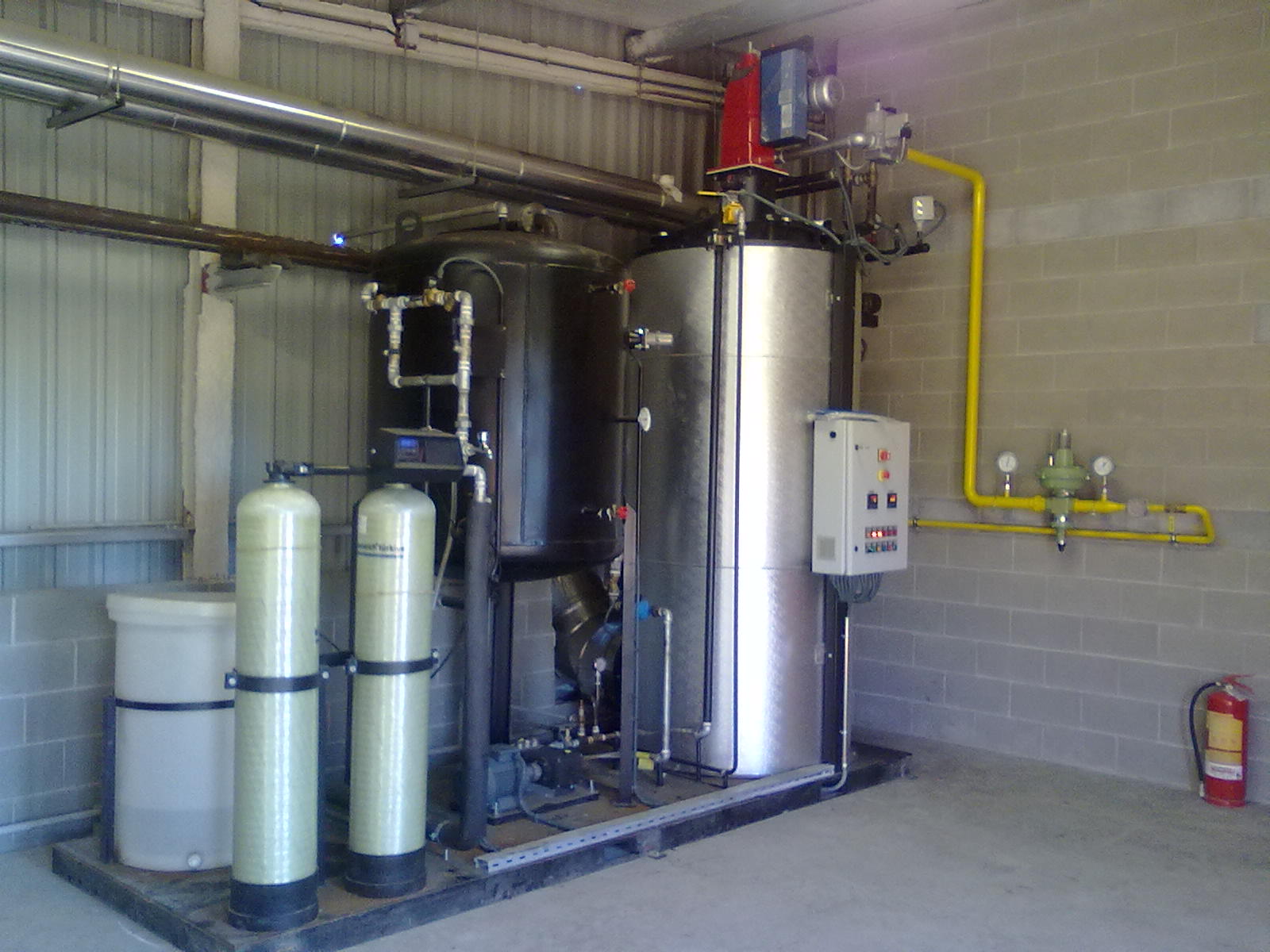

  • Sprint steam generators (water-tube) from 300 to 2.000 kg/h.

Heating Options:

  • Liquid fuels: Light oil, Heavy fuel
  • Gas fuels: Natural Gas, Propane Gas, Biogas, Effluent gases
  • Waste heat recovery from cogeneration engines or turbines, with optional in-duct burner (postcombustion)

Characteristics:

Standards for design, construction and maintenance:

  • Shell Boilers: EN 12953
  • Sprint steam generators (water-tube): EN 12952
  • Hot water boiler: EN 303 Directive 92/42/CE
  • Marking Directive 97/23/CE DEP
  • Indirect Surveillance with intervals of 24 hours supervision (or 72 hours optional)
  • High heat transfer Surface and water volume
  • Low thermal load
  • Plain or corrugated combustion chamber. Oversized combustion chamber
  • High vapour quality. Vaporization without water dragging
  • Wet-back and internal inversion chamber (without refractory)
  • Easy maintenance and cleaning

Construction:

  • Standard boiler: Horizontal with 3-pass gas, with one or two combustion chambers.
  • Waste heat recovery boiler or Hybrid boilers: Horizontal with one gas pass, with one internal combustion chamber or external combustion chamber.
  • Sprint steam generators (water-tube): Vertical or Horizontal

Availability of skid mounted system or installed inside a container
