9.
Heating cabinet
Heating cabinet
and jackets
- Standard models or bespoke designs
- Heating efficiency
- Forced air circulation
- No need for heavy building work
- Ex-protection design

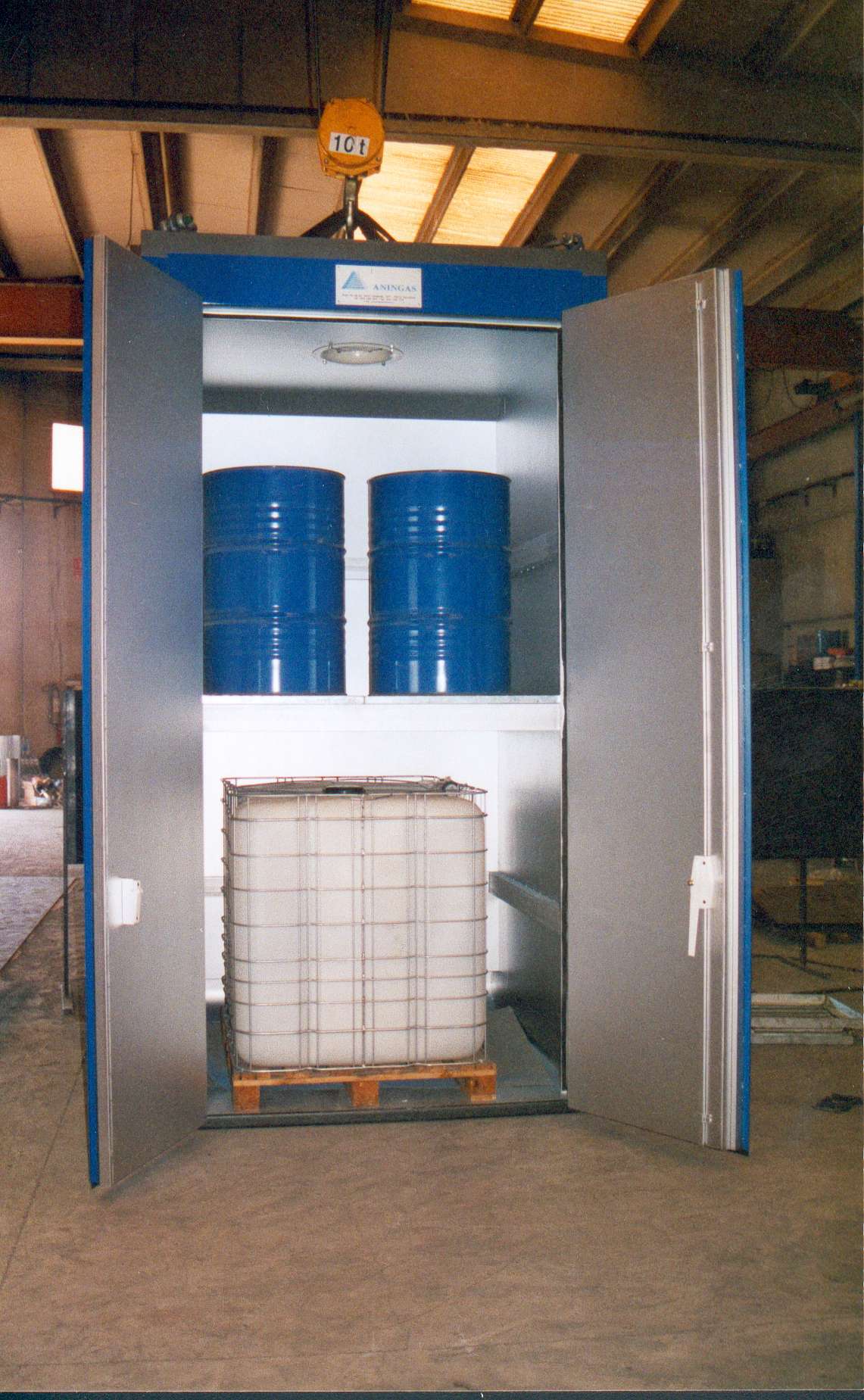

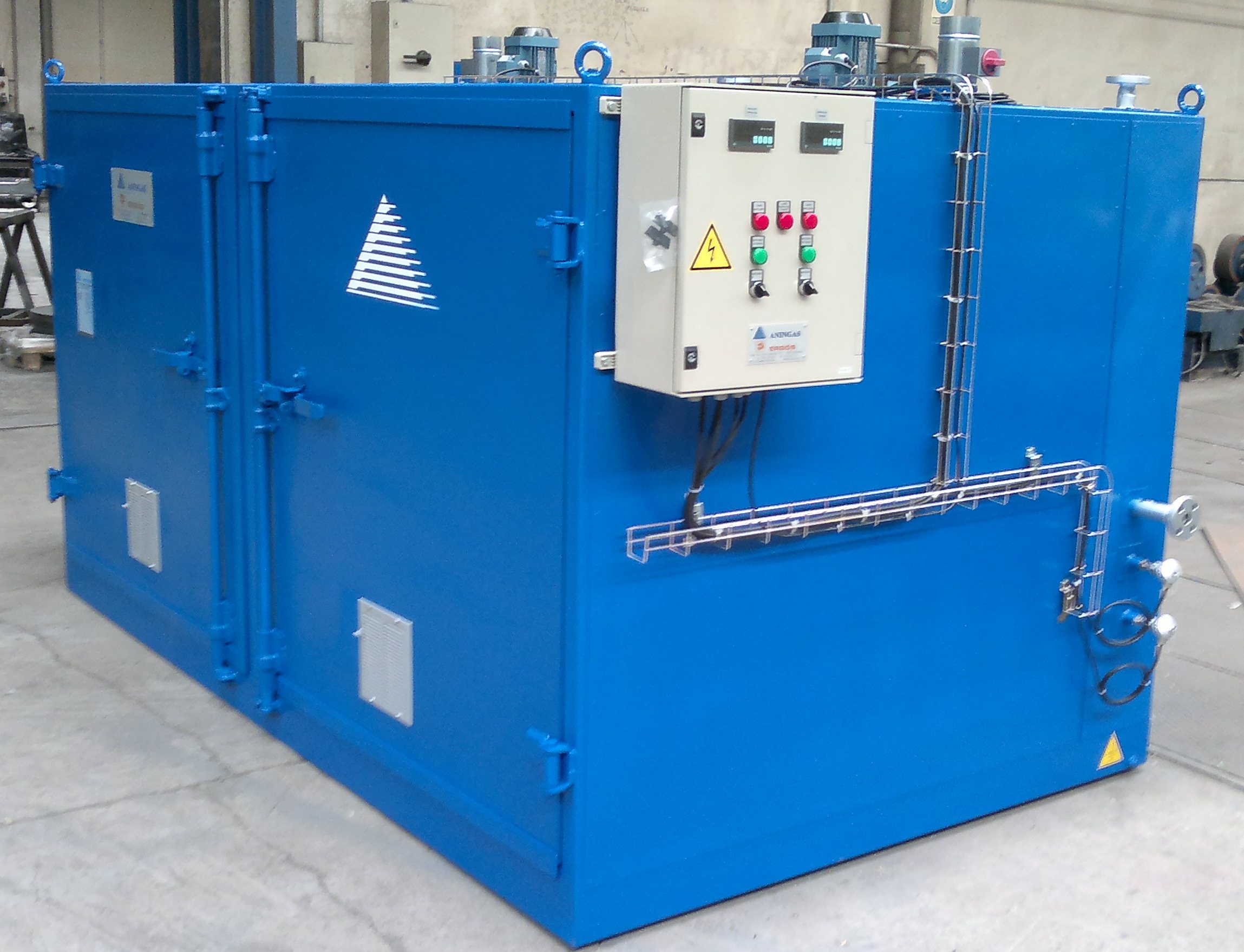

Heater boxes (heating cabinets) for heating products in drums or containers IBC:
- Capacity of the standard models from 2 to 48 drums (12 containers IBC 1.000 liters)
- Options for one level or two levels with intermediate separation
- Temperatures up to 160ºC
- Flexibility as they can be used with drums or containers of different sizes and materials (metal or plastic).
- Sturdy construction with rigid steel structure
- Efficient thermal insulation
- Minimum energy consumption
- Automatic temperature control
- Forced air circulation through the heating elements by use of recirculation fans
- Hooks located on the cabinet roof for easier installation
- Adjustable openings for air inlet and gas extraction
- Ex-protection design (Suitable for hazardous areas)
Heating Options:
- Electricity
- Steam
- Thermal fluid
- Hot water
- Mixed heating (steam and electricity, thermal fluid and electricity, ...)
- Direct steam injection. Heating chambers to melt
Fitting options:
- Integrated heating and cooling systems
- Stainless steel
- Bunded spill
- Tunnel type. Front and rear doors. First in / First out
- Entrance with pallet truck
- Mobile construction, over wheels
- Door contact switch for door opening
- Outdoor location protection
- Modular construction for on site assembly
Quotation request:

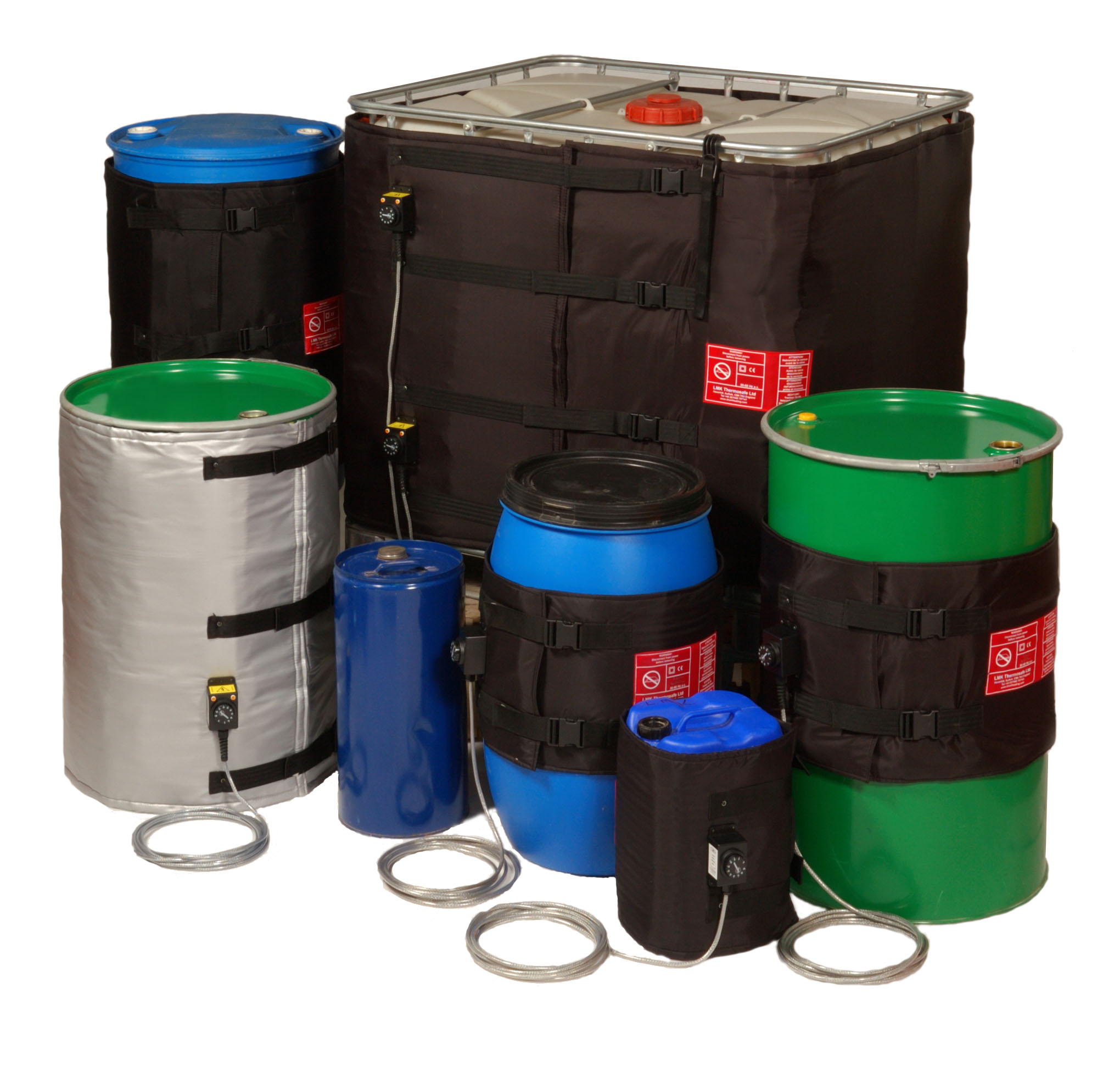

Individual electric heaters:
For Safe Area:
- Wide range of standard sizes to heat drums (25 L, 50 L, 100 L and 200 L) and IBC containers (plastic, fibre or metal)
- Variety of power ratings to suit most applications (from avoid freezing liquids in winter or to melt waxes or gels)
- Adjustable thermostats in different ranges, up to 180 ºC
- Heaters for pressurised gas bottles
- Customized heating jackets for special sizes
For Hazardous Areas ATEX INTELIHEAT:
Certified ATEX Zones 1 and 2
- Temperature automatically controlled. At the drum wall limited up to 80ºC and at the container wall limited up to 55ºC
- Designed and certified for use with plastic or steel 200 L drums or IBC containers
- Ideal for gentle warming and to avoid winter freezing

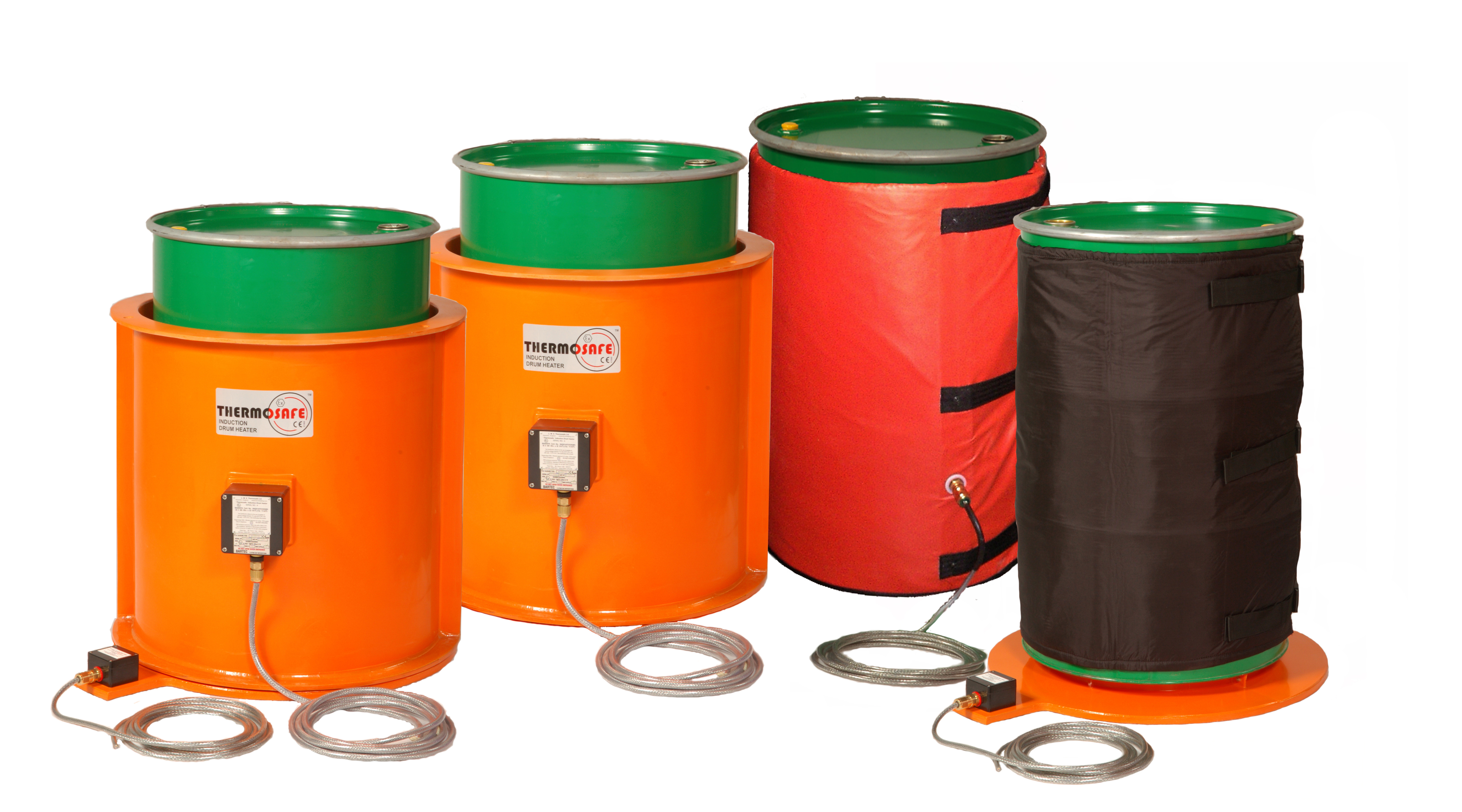

Drums heating with induction heater THERMOSAFE:
Certified ATEX Zones 1 and 2
- Quick and efficient system to heat steel drums up to 200 L
- Thermosafe is an induction heater thus there is no heat transfer by radiation.
Additional information:
You can get more information of the characteristics and a comparison of heating times for guidance only on our blog (in Spanish):
